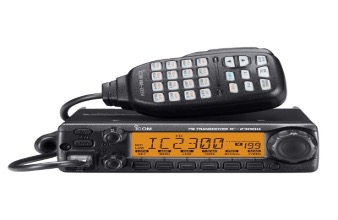

Description
- Built-in CTCSS and DTCS encoder/decoder for quiet standby and repeater access
- Power supply voltage display
- 4.5W (typical) loud audio
- Reduced depth dimensions
- DTMF autodial
- Time-out timer
- Repeater lockout
- Automatic power off
- S-meter squelch
- Wide/narrow channel setting
- Weather channel receive and weather alert function
- Automatic repeater function
- Selectable squelch delay from short and long
- Squelch attenuator reduces suppression from string signals
Specification
General
| Frequency coverage |
|
||
| Mode |
F2D, F3E |
||
| No. of memory channels | 207 (including 6 scan edges and 1 call) | ||
| Frequency resolution | 5, 6.25, 10, 12.5, 15, 20, 25, 30, 50kHz | ||
| Operating temp. range |
–20°C to +60°C; 14°F to +140°F; |
||
|
Frequency stability |
±3ppm (–10°C to +60°) |
||
|
Power supply requirement: |
13.8V DC ±15% | ||
| Current drain (at 7.4V DC):
Transmit at 65W Receive Stand-by Receive Max. audio |
11A 0.4A 1.5A |
||
| Antenna impedance | 50Ω (SO-239) | ||
| Dimensions (W×H×D) (projections not included) |
140x1.57x162 mm; 5.51x1.57x6.38 in | ||
| Weight (approx.) | 1Kg; 2.43lb |
Transmitter
| Modulation system | Variable Reactance |
| Output power | 65/25/10/5W |
| Spurious emissions | Less than –60dBc (High, Mid) |
| Max. deviation | ±5.0/2.5 kHz wine/narrow) |
| Microphone impedance | 60Ω (8-pin modular) |
Receiver
| Receiver system | Double superheterodyne |
| Intermediate frequency | 46.35MHz/450kHz (1st/2nd) |
| Sensitivity | Less than 0.18μV at 12dB SINAD |
| Squelch Sensitivity | Less than 0.13μV at threshold |
| Selectivity
Wide
Narrow |
More than ±6kHz/6dB More than ±14kHz/60dB More than ±3kHz/6dB More than ±9kHz/55dB |
| Spurious rejection |
More than 60dB |
| Audio Output Power | 4.5W (typ.) |
| External speaker connector | 2-conductor 3.5(d) mm 1/8"/4Ω |
