Description

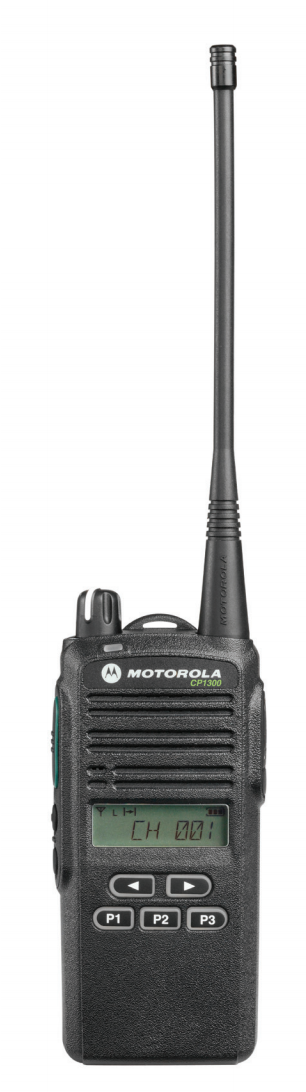

Ideal for light manufacturing, retail, hospitality and real estate management, the Motorola CP1300 commercial radio brings you quality features you need at a competitive price.
Specification
General
|
Frequency Range |
VHF: 136-174MHz UHF: 403-446MHz / 435-480MHz / 350-390MHz |
|
Memory Channels |
99 CH |
|
Channel Spacing |
2.5/25 kHz switchable |
|
Operating Temperature Range |
-30°C to +60°C (Radio) |
|
Dimensions (H X W X D) |
120 x 55 x 35.5 mm |
|
Weight |
335.0 gm |
|
Average Battery Life |
up to 11 hrs |
|
Sealing |
Passes rain testing per IP54 |
|
Shock & Vibration |
Diecast with impact resistance polycarbonate housing, Meets MIL-STD810C/D/E/F |
|
Dust & Humidity |
Weather resistant housing Meets MIL-STD810C/D/E/F |
Transmitter
| RF Output |
VHF: High Power 5W/ Low 1W UHF: High Power 4W/ Low 1W |
|
Spurs and Harmonics |
9kHz - 1GHz < -36dBm > 1GHz < -30dBm |
|
Frequency Stability (-30°C to +60°C) |
+/- 2.5ppm |
| FM Hum & Noise |
> 40dB |
|
Modulation Limiting |
≤ 5khz (25kHz) ≤ 2.5khz (12.5kHz) |
|
Audio Response (from 6dB/oct pre-emphasis, 300-3000Hz) |
≤ +1/-3dB |
|
Audio Distortion @ 1kHz tone, 60% rated max dev. |
<5% |
Receiver
|
Sensitivity (12dB SINAD) |
<-119 dBm (0.25uV) |
|
Adjacent Channel Selectivity |
>70dB (25kHz), >65dB (12.5kHz) |
| Intermodulation |
>70dB |
|
Spurious Rejection |
>70dB |
|
Audio Distortion |
<5% |
|
Hum and Noise |
>40dB |
|
Conducted Emission |
< -57dBm for below 1GHz < -47dBm for above 1GHz |
|
Audio Output @ <5% Distortion |
500mW (at 24 ohm) |
