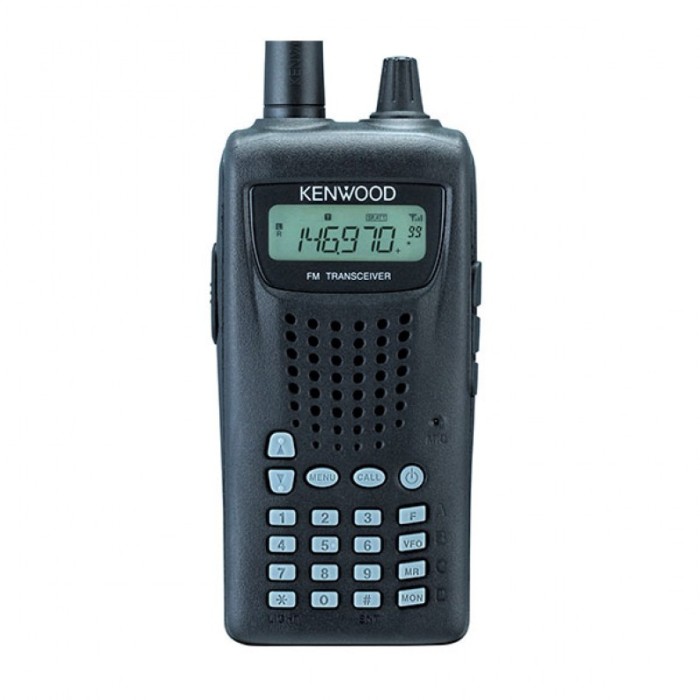

Description
- Multiple Scan Functions
- CTCSS (42 subtone frequencies), DCS (104 codes)
- Busy Channel Lock Out, Memory Channel Lock Out
- Memory Shift, Beat Shift
- Channel Display Mode
- Split Channel
- Automatic Simplex Checker (ASC)
- VFO Reset, Full Reset - Beep On/Off
- High-capacity Ni-MH battery (Optional)
- Reverse
- Auto Power Off
- Time-out Timer
- Alphanumeric Channel Name
- Battery Save
Specification
General
| Frequency Range | TX: 136 - 174 MHz RX: 136 - 174 MHz |
| Mode | F3E |
| Number of Channels | 100 ch** |
| Power Requirement | DC 6.0 - 9.0 V (7.5 V nominal) |
| Antenna Impedance | -50Ω |
| Operation Temperature | --10°~ +50°C |
| Battery Life | Hi 8 hours Low 15 hours |
| Frequency Stability | ±5 ppm |
| Dimensions | 58 x 120 x 28.4 mm |
| Weight | 375 g |
Transmitter
| RF Power Output (approx.) Hi / Low | 5.5 W / 0.5 W |
| Modulation | Reactance modulation |
| Spurious Emission | Less than -60 dB |
| Maximum Frequency Deviation | ±5kHz |
| Audio Distortion | Less than 3 % |
Receiver
| Circuitry | Double Super Heterodyne |
| Sensitivity (12dB SINAD) | Less than 0.18 µV |
| Squelch Sensitivity | Less than 0.13 µV |
| Selectivity -6 dB -40 dB |
More than 10 kHz Less than 28 kHz |
| Intermediate Frequency 1st IF 2nd IF |
38.85 MHz 450 kHz |
| Spurious Response | 55 dB |
| Audio Output | more than 400 mW (10% distortion) |
